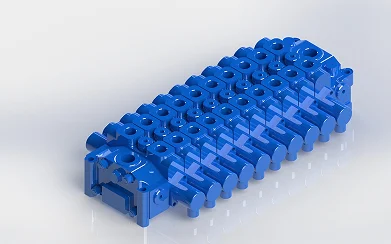

10 Spool Hydraulic Valve
Hydraulic Directional Control Valve
- Centralized multi-actuator control: Supports control of up to 10 working functions, making it suitable for multi-circuit hydraulic systems.
- Flexible oil supply modes: Compatible with single-pump or multi-pump supply, allowing easy matching with different system architectures.
- Modular sectional structure: A cast-in internal flow passage sectional design provides high integration and facilitates system configuration and future expansion.
- Series-based specification options: Multiple port sizes and flow ratings are available to meet the selection requirements of different equipment types.
Technical Specifications
| Fluid Media | Hydraulic oil |
| Mounting Type | Threaded/flanged connection |
| Control Type | Manual/Hydraulic |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Max. Working Pressure | 315bar |
| Nominal Diameter | 20mm |
| Nominal Pressure | 315bar |
| Nominal Flow | 150L/min |
| Allowable Back Pressure | 20bar |
