Custom Integrated Valve Manifolds
The integrated valve manifolds are custom-engineered products developed for the hydraulic systems of coal mine horizontal directional drilling rigs. These manifolds are specifically designed and integrated based on the individual requirements of the customer’s equipment. Through system-level integration, the manifold consolidates multiple control and auxiliary functions required by directional drilling rigs into a single valve manifold. This approach reduces external piping and dispersed valve components.
Features & Advantages
- Customized design: Functional configurations can be customized according to actual operating conditions, meeting the requirements for control accuracy and reliability during drilling, positioning, and auxiliary operations.
- Dedicated operating-condition adaptation: Supports integration of drilling-rig-specific functions such as drill rod loading and unloading, reverse floating control, and low-speed rotational positioning.
- Dedicated operating-condition adaptation: Supports integration of drilling-rig-specific functions such as drill rod loading and unloading, reverse floating control, and low-speed rotational positioning.
Dimension Drawing

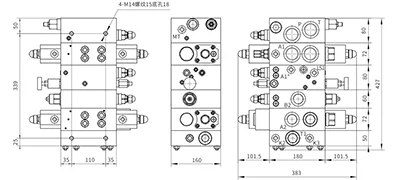

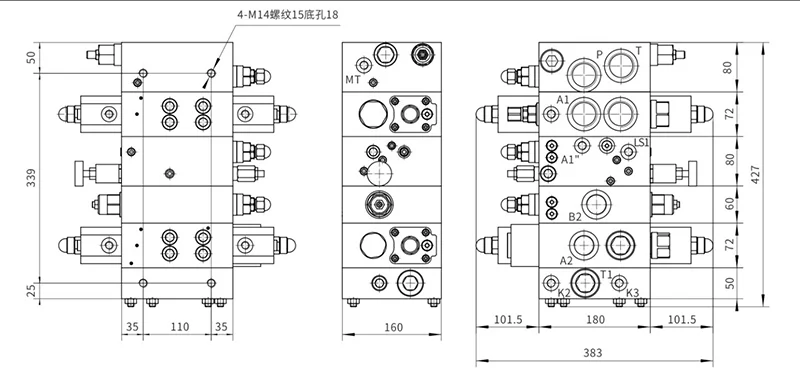

DXZJ-DZ

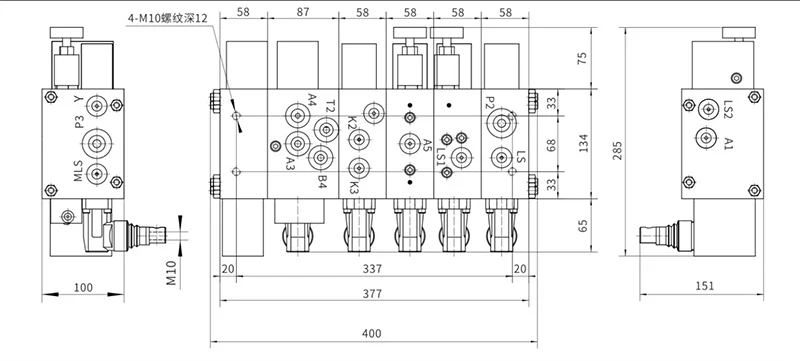

DXZJ-GKKZ
