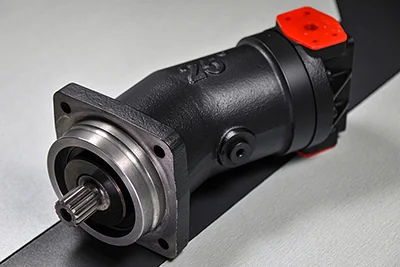

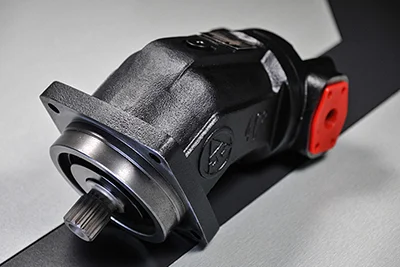

Constant Pump/Motor
LT-A2F Series (23-107ml/R)
The LT-A2F bent-axis constant motors/pumps are reversible hydraulic units. By selecting different valve plates and rear covers, the same motor can be configured either as a constant displacement pump or a constant displacement motor, making it suitable for both open-circuit and closed-circuit hydraulic transmission systems.
With a fixed displacement design, motor output speed is proportional to input flow, while output torque increases with system pressure differential. This constant pump/motor is well suited for stable operating conditions and hydraulic systems with high reliability requirements.
Request a Quote
With a fixed displacement design, motor output speed is proportional to input flow, while output torque increases with system pressure differential. This constant pump/motor is well suited for stable operating conditions and hydraulic systems with high reliability requirements.
Technical Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded/flanged connection |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Max. Flow Rate | 321L/min |
| Max. Working Pressure | 350bar |
| Size | Max. Speed (r/min) | Max. Flow Rate (L/min) | Rated Pressure (bar) | Output Power (kW) | Output Torque (Nm) | Mass (kg) |
|---|---|---|---|---|---|---|
| 23 | 5600 | 127 | 350 | 74 | 126 | 12 |
| 28 | 4750 | 133 | 350 | 78 | 156 | 12 |
| 45 | 3750 | 202 | 350 | 118 | 247 | 23 |
| 55 | 3750 | 206 | 350 | 120 | 305 | 23 |
| 63 | 3750 | 252 | 350 | 147 | 351 | 33 |
| 80 | 3350 | 268 | 350 | 156 | 445 | 33 |
| 107 | 3000 | 321 | 350 | 187 | 595 | 44 |
| 125 | 3000 | 394 | 350 | 230 | 696 | 63 |
| 160 | 2650 | 424 | 350 | 247 | 890 | 63 |

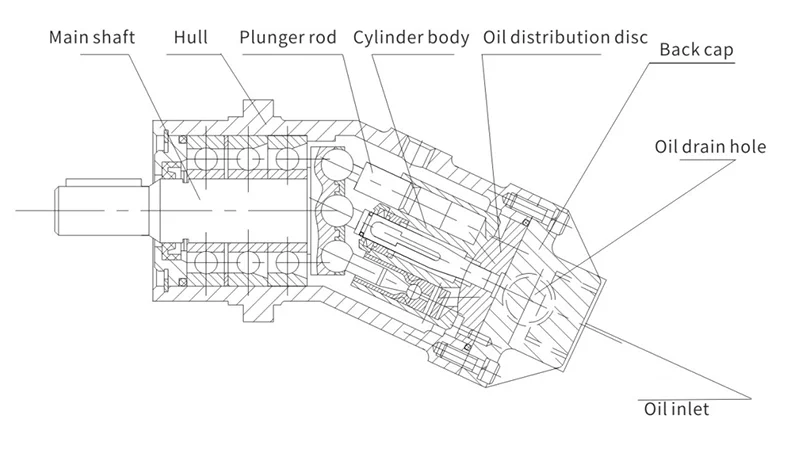

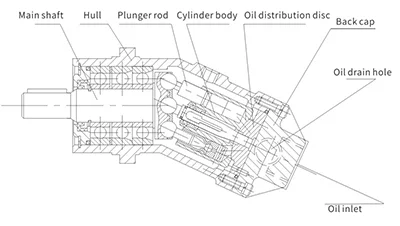

Diagram

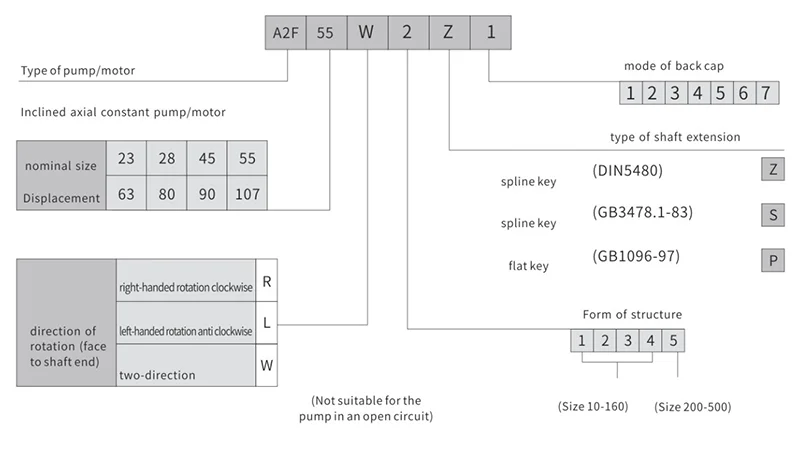

Selection Guidelines
Features & Advantages
- Reversible pump/motor application: Different configurations allow use as either a pump or a motor, enhancing platform versatility and system compatibility.
- Bent-axis constant displacement structure: Provides stable output characteristics and is suitable for continuous-duty operation.
- Spherical valve plate design: Features self-centering capability, helping to improve volumetric efficiency and reduce wear.
- Proven and reliable construction: Suitable for long-term operation under high loads, with a wide range of application fields.
