Low Speed High Torque Motor

LTM Series (400-1400ml/r)

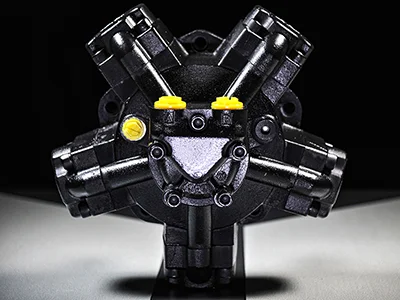

Low Speed High Torque Motor, LTM Series (400-1400ml/r)
The LTM series low speed high torque hydraulic motors adopt a radial five-piston configuration, delivering large displacement, low-speed operation, and high torque output. This motor is designed for hydraulic drive systems requiring direct drive, allowing working mechanisms to be driven without a reduction gearbox. With excellent low-speed stability, LTM series motors are well suited for heavy-load starting and continuous low-speed operation.
Request a Quote
Technical Specifications
Fluid Media Hydraulic oil
Mounting Type Threaded connection
Seal Material NBR/FKM (Viton)
Body Material Cast iron
Max. Flow Rate 500L/min
Max. Working Pressure 250bar

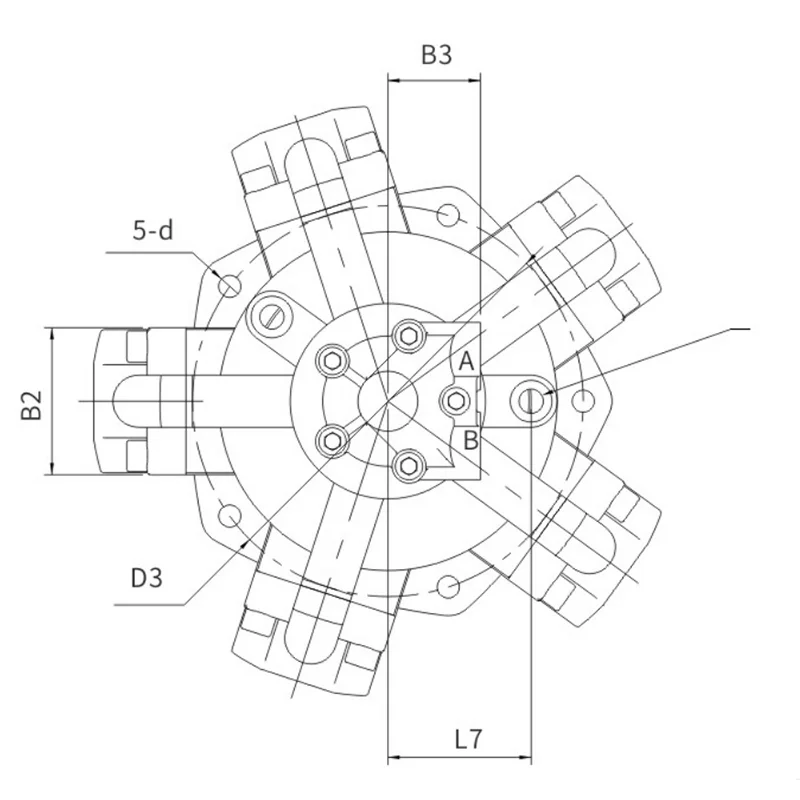

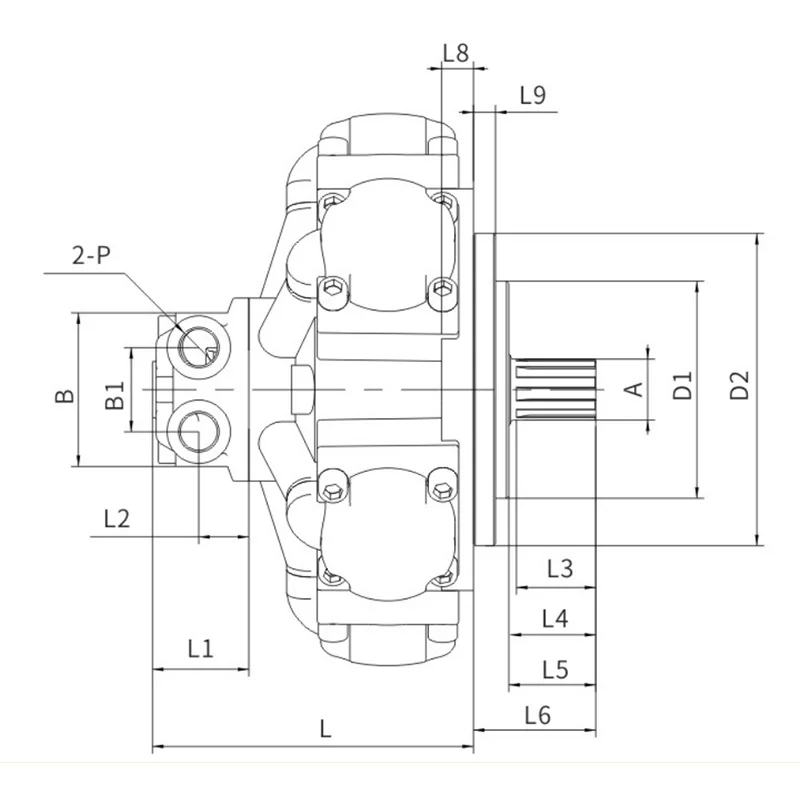

Model LTM2-100-280 LTM3-200-400 LTM6-400-600 LTM11-700-1300 LTM16-1400-2400
D 250 298 378 460 530
D1 120 134 150 178 206
D2 162f7 190f7 230f7 256f7 301f7
D3 180 210 254 300 327
d φ13 φ13 φ16.5 φ17 φ21
L 185 199 238 261 283
L1 60 60 82 63 63
L2 26 26 36 30 30
L3 30 38 50 50 65
L4 40 57 65 70 88
L5 55 58 71 74 107
L6 57 65 90 102 126
L7 73 78.5 94 110 120
L8 15 15 21 25 30
L9 14 14 16 18 22
B 124 124 124 150 150
B1 56 56 69 69 69
B2 80 84 106 112 142
B3 65 65 70 70 70
O G1/4'' G1/2'' G1/2'' G1/2'' G1/2''
P G3/4'' G3/4'' G1'' G1'' G1''
A 6-25b12×30b12×6f8 8-32b12×38b12×6f8 8-36b12×42b12×7f8 8-45×50a11×9d10 8-62b12×72b12×12f8
Model Displacement (ml/r) Rated Pressure (bar) Max. Pressure (bar) Output Torque (Nm) Specific Theoretical Torque (Nm) Speed Range (r/min) Mass (kg)
LTM2-100 113 250 320 420 18 10-1250 27
LTM2-150 159 250 320 620 25 10-1000
LTM2-175 180 200 250 526 28 10-1000
LTM2-200 206 200 250 600 32 8-800
LTM2-250 235 200 250 800 40 8-630
LTM2-275 276 200 250 880 44 9-630
LTM3-200 201 250 320 800 32 8-800 35
LTM3-250 254 250 320 949 40 8-630
LTM3-300 289 200 250 864 46 6-500
LTM3-350 340 200 250 1000 55 6-400
LTM3-400 408 200 250 1300 65 6-400
LTM3-450 452 200 250 1440 72 6-400
LTM6-400 406 200 250 1290 64 5-630 63
LTM6-450 454 200 250 1460 73 5-630
LTM6-500 500 250 320 2000 80 5-500
LTM6-600 604 200 250 1920 96 4-500
LTM6-700 697 200 250 2220 111 4-400
LTM6-800 795 200 250 2520 126 4-320
LTM6-1000 980 200 250 3040 155 4-250
LTM11-700 697 200 250 2220 116 4-400 102
LTM11-800 795 200 250 2520 130 3-400
LTM11-1000 1022 250 320 4075 163 3-320
LTM11-1100 1116 200 250 3540 177 3-320
LTM11-1200 1209 200 250 3960 198 3-320
LTM11-1300 1328 200 250 4180 209 3-250
LTM11-1400 1386 200 250 4400 220 2-400
LTM11-1600 1531 200 250 4860 243 2-320
LTM11-1800 1814 200 250 5433 283 2-320
Diagram
Diagram
Selection Guidelines
Selection Guidelines
Features & Advantages
  • Radial five-piston structure: Optimized for low-speed, high-torque output with stable performance at low speeds.
  • Large-displacement direct-drive capability: Displacement range covers 400-1400 ml/r, enabling direct drive of working mechanisms.
  • High torque output: Rated torque can reach over 5400N·m, supporting demanding heavy-duty applications.
  • Suitable for heavy-load conditions: Ideal for slewing, travel, and winch drives under high-load operating conditions.
