Constant Pump/Motor

LT-A2FW6.1 Series (28-180ml/R)
Constant Pump/Motor, LT-A2FW6.1 Series (28-180ml/R)

The LT-A2FW6.1 constant displacement hydraulic pumps/motors are suitable for both open-circuit and closed-circuit hydraulic transmission systems. Featuring a fixed displacement design, output speed is proportional to input flow, while output torque increases with system pressure differential. This series is well suited for hydraulic drive systems with stable operating conditions and high requirements for efficiency and reliability.

Request a Quote
Technical Specifications
Fluid Media Hydraulic oil
Mounting Type Threaded/flanged connection
Seal Material NBR/FKM (Viton)
Body Material Cast iron
Max. Flow Rate 477L/min
Max. Working Pressure 350bar
Size Max. Speed (r/min) Max. Flow (L/min) Rated Pressure (bar) Output Power (kW)
△P=350bar, n=max. speed 		Output Torque (Nm)
△P=350bar, n=max. speed 		Mass (kg)
12 6000 70 350 41 67 6
23 4750 109 350 63 127 9.5
28 4750 133 350 78 156 9.5
56 3750 210 350 123 312 18
80 3350 269 350 157 447 23
107 3000 320 350 187 594 32
160 2650 425 350 248 894 45
16 6000 96 350 56 89 6
32 4750 152 350 88 178 9.5
45 4250 194 350 113 254 13.5
63 3750 235 350 137 350 18
90 3350 301 350 176 500 23
125 3000 375 350 219 696 32
180 2650 477 350 278 1001 45

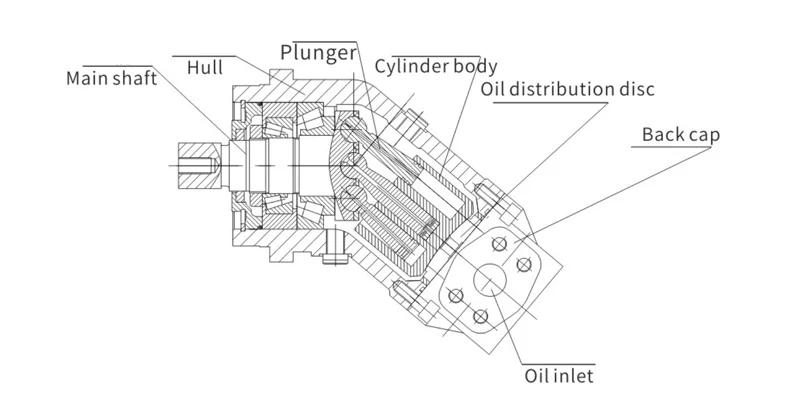

Diagram
Diagram

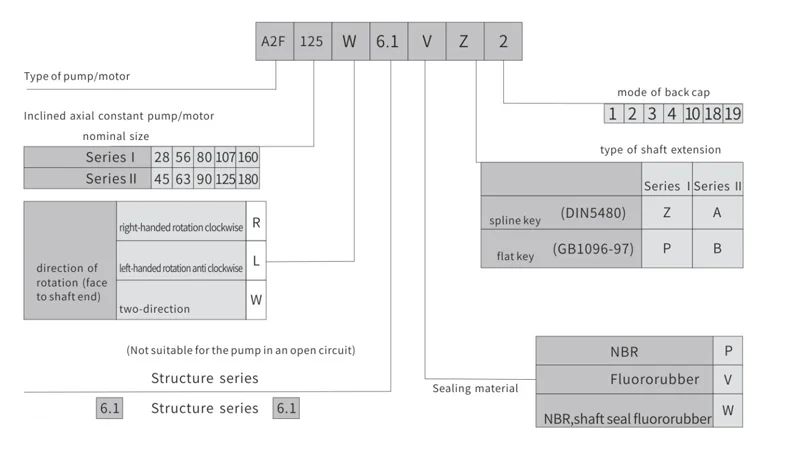

Selection Guidelines
Selection Guidelines
Features & Advantages
  • Bent-axis constant displacement structure: Provides stable output characteristics and is suitable for continuous-duty operation.
  • Spherical valve plate design: Offers self-centering capability, helping to improve volumetric efficiency and reduce wear.
  • High-reliability bearing arrangement: A combination of ball bearings and roller bearings supports high loads and long service life.
  • Low-noise operation: Optimized internal structure contributes to reduced operating noise and improved operator comfort.
