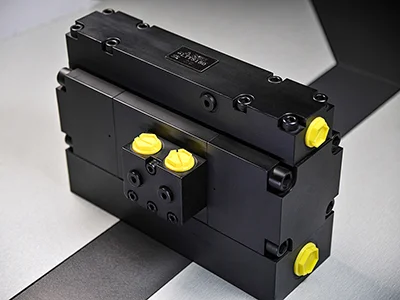

Hydraulic-Driven High-Pressure Water Pumps
LTYS Series
The LTYS series hydraulic-driven high-pressure water pumps are powered by the hydraulic system, converting hydraulic energy into high-pressure water flow and pressure output. They are suitable for high-pressure water applications in construction machinery and coal mining equipment. The pumps can be directly connected to the machine’s existing hydraulic system, enabling high-pressure water output without additional power infrastructure.
Technical Specifications
| Size | Max. Flow Rate | Max. Water Outlet Pressure | Max. Water Temperature | Max. Output Power | Max. Suction Height | Suction Water Pressure Range |
|---|---|---|---|---|---|---|
| 150 | 150L/min | 90bar | 70℃ | 22.5KW | 3m | -0.3~10bar |
| 80 | 80L/min | 200bar | 70℃ | 26.6KW | 3m | -0.3~10bar |
水泵的输出压力与液压压力呈线性比例关系
水泵的输出流量与液压流量呈线性比例关系

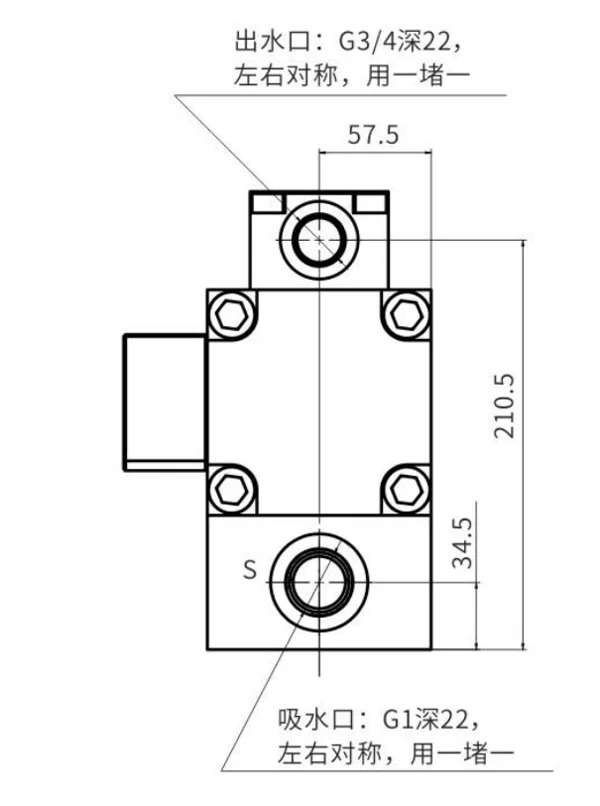

Dimension Drawing

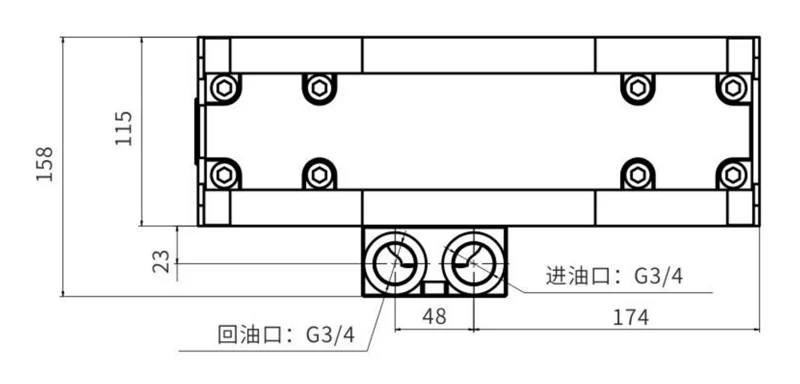

Dimension Drawing

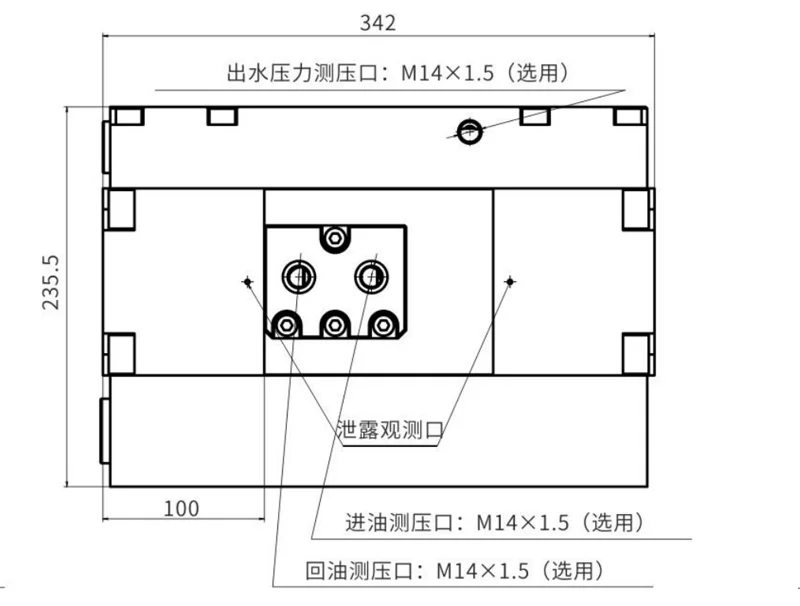

Dimension Drawing

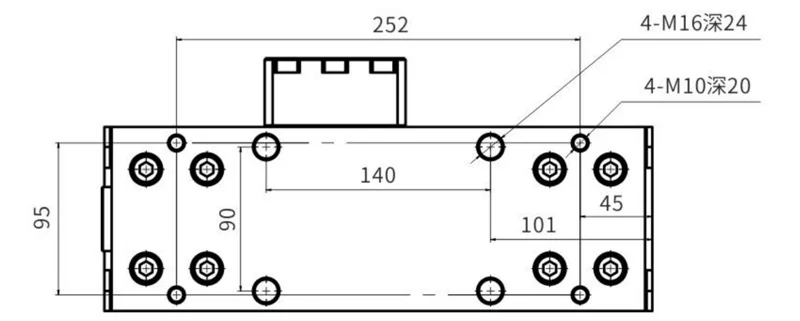

Dimension Drawing
Features & Advantages
- Linear output characteristics: Water pressure and flow are linearly proportional to the input hydraulic pressure and flow, allowing easy system adjustment and control matching.
- No independent power source required: Operates entirely on the machine’s hydraulic system, eliminating the need for electric motors or separate power units, ideal for mobile equipment and complex operating conditions.
- Functional medium output: Converts hydraulic power into high-pressure water output to support non-hydraulic applications such as cleaning, dust suppression, and cooling.
