Load-Sensing Hydraulic Manifold
MT (Hydraulic Manifold Systems)
The MT series load-sensing hydraulic manifold is a load-feedback hydraulic valve assembly that matches system flow to load demand by detecting actuator load pressure and regulating hydraulic pump output. Within the same valve system, the series supports both pre-compensation load sensing (LS) and load-pressure independent flow distribution (LUDV) control principles, making it suitable for hydraulic systems that require energy efficiency as well as high-performance combined operations.
Features & Advantages
- LS and LUDV compatibility: Based on load-sensing control, the design accommodates both low-power unloading and flow-sharing requirements during combined operations.
- Flow-sharing capability: During multi-actuator simultaneous operation, load-independent proportional motion can be achieved.
- Flexible control options: Supports manual, hydraulic pilot, electric, and CAN bus control, facilitating integration with different control architectures.
- Strong system tuning capability: Flow-gain characteristics of the directional sections can be customized and are supported by multi-stage pressure protection functions.

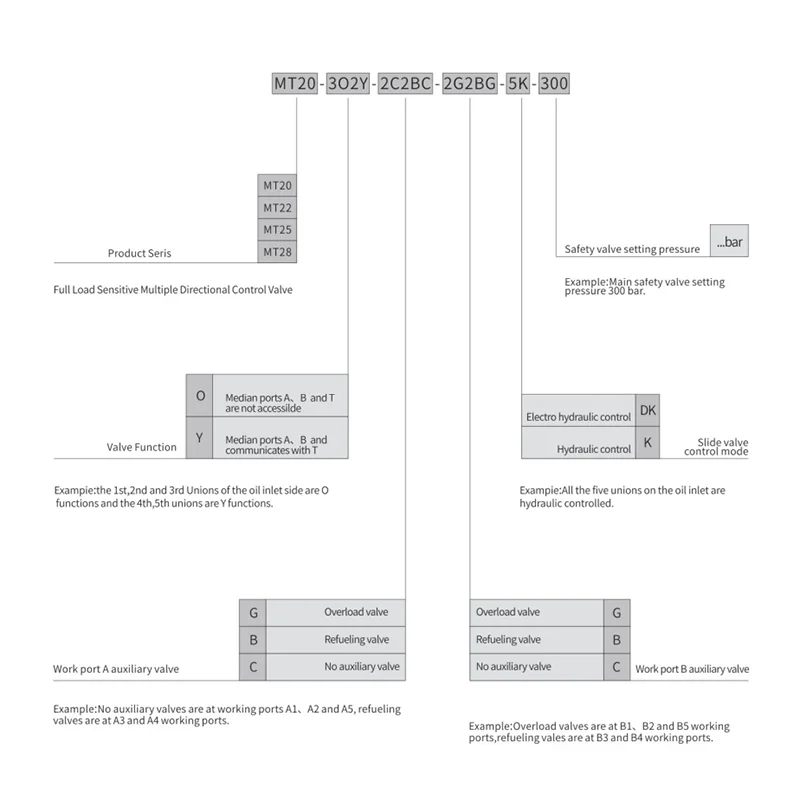

Selection Guidelines
MT-G20L Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 20mm |
| Max. Flow Rate | 100L/min |
| Pilot Control Pressure | 6bar-25bar |
| Max. Working Pressure | 315bar |
MT-G22L Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 22mm |
| Max. Flow Rate | 150L/min |
| Pilot Control Pressure | 6-25bar |
| Max. Working Pressure | 350bar |
MT-G25L Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 25mm |
| Max. Flow Rate | 250L/min |
| Pilot Control Pressure | 6-25bar |
| Max. Working Pressure | 350bar |
MT-G28L Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Flanged connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 28mm |
| Max. Flow Rate | 400L/min |
| Pilot Control Pressure | 6-25bar |
| Max. Working Pressure | 350bar |
Customer Cases

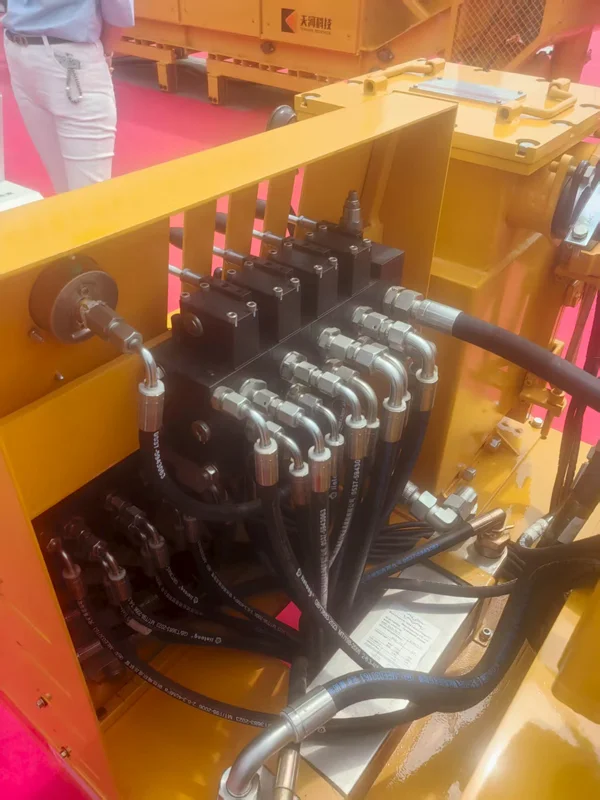

An engineering machinery manufacturer in China adopted MT series load-sensing directional control valves for aerial work platforms.

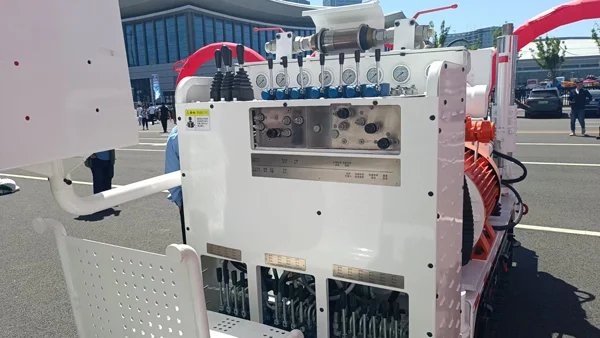

A coal machinery enterprise in China adopted MT series load-sensing directional control valves for kilometer-level directional drilling rigs.

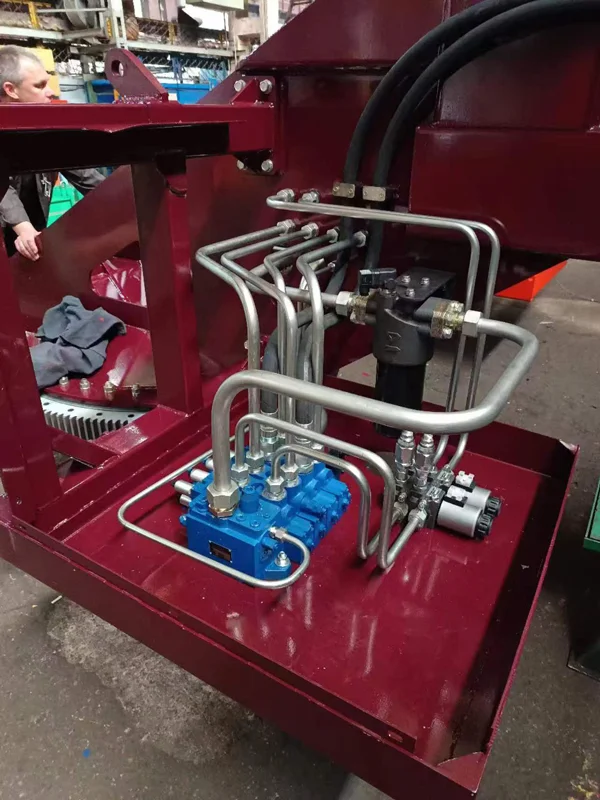

MAZ Automobile Plant (Belarus) adopted MT series load-sensing directional control valves for truck cranes.
