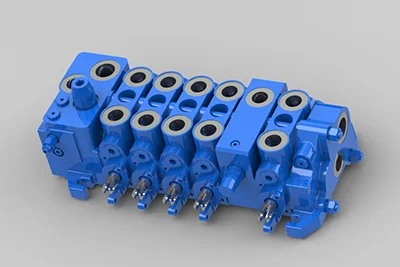

Load-Sensing Hydraulic Manifold, QFZMG14H
The QFZMG14H load-sensing hydraulic manifold is designed based on the LUDV principle, enabling load-pressure-independent flow distribution between individual valve sections. This makes it suitable for hydraulic systems that require proportional consistency during combined operations.
A compact sectional structure is adopted, allowing different valve assemblies to be formed as required. Compatibility with both fixed displacement pumps and variable displacement pumps makes the valve suitable for a wide range of hydraulic control applications.
A compact sectional structure is adopted, allowing different valve assemblies to be formed as required. Compatibility with both fixed displacement pumps and variable displacement pumps makes the valve suitable for a wide range of hydraulic control applications.
Features & Advantages
- LUDV flow distribution mechanism: Flow distribution of each valve section is independent of load pressure, ensuring stable proportional motion during combined operations.
- Wide pump compatibility: Suitable for use with both fixed displacement pump systems and variable displacement pump systems.
- Flexible system protection and control: Supports multiple control methods and is equipped with multi-stage pressure protection functions.
- Customizable operating-condition matching: Configuration adjustments can be made on the basis of the standard structure to meet the requirements of different equipment and applications.

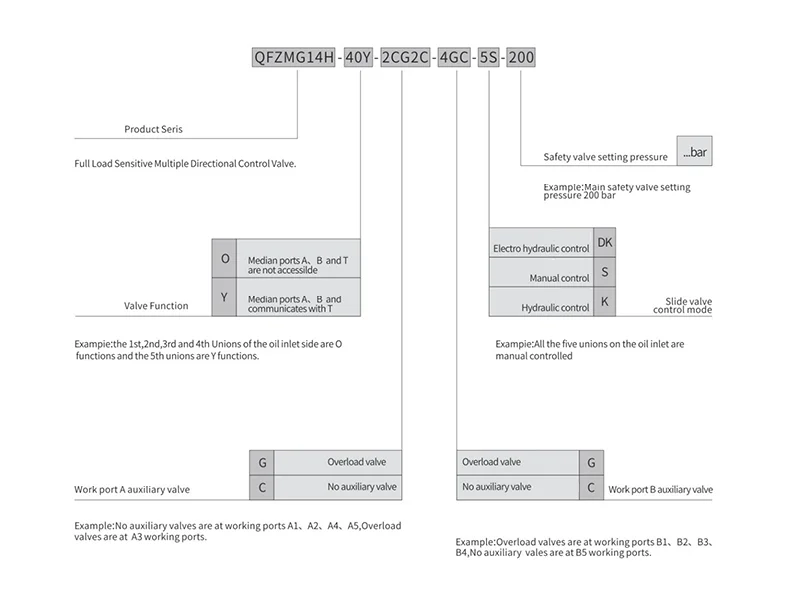

Selection Guidelines
3 Spool Load-Sensing Hydraulic Manifold
4 Spool Load-Sensing Hydraulic Manifold
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 14mm |
| Max. Flow Rate | 170L/min |
| Max. Working Pressure | 250bar |

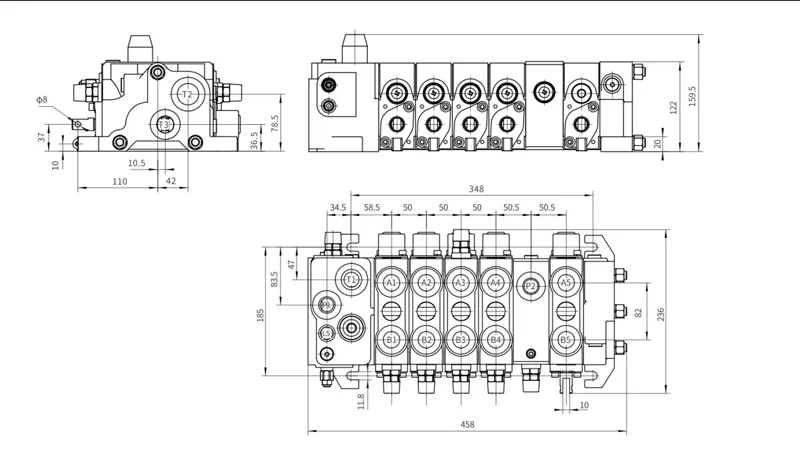

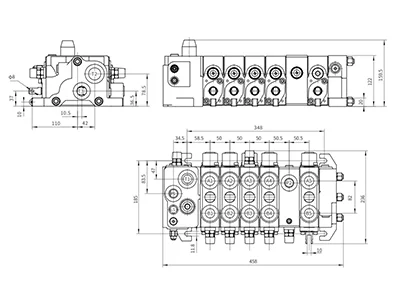

Dimension Drawing

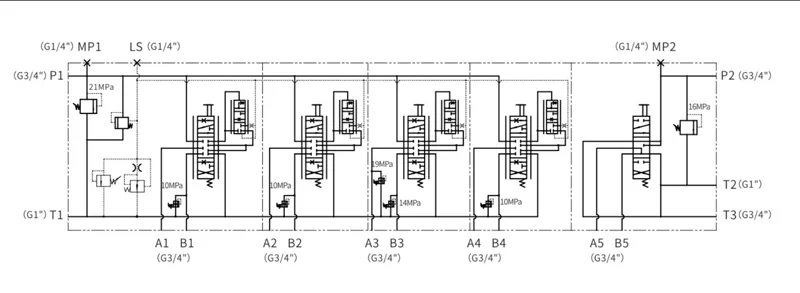

Diagram

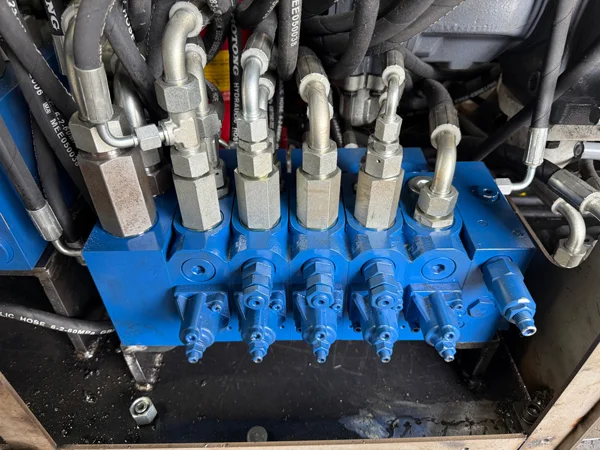

Customer Cases
A mining dump truck showcased by Shantui Heavy Industry at the 2024 Shanghai Bauma Exhibition, equipped with QFZMG32 series load-sensing hydraulic manifold.

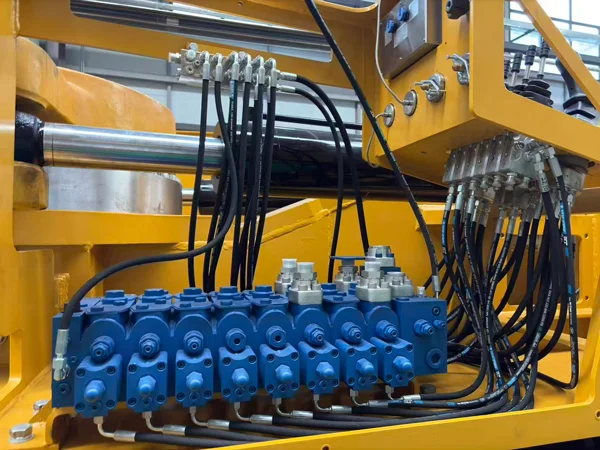

A rotary drilling rig manufactured by a construction machinery enterprise in China, using QFZMG28H series load-sensing hydraulic manifold.

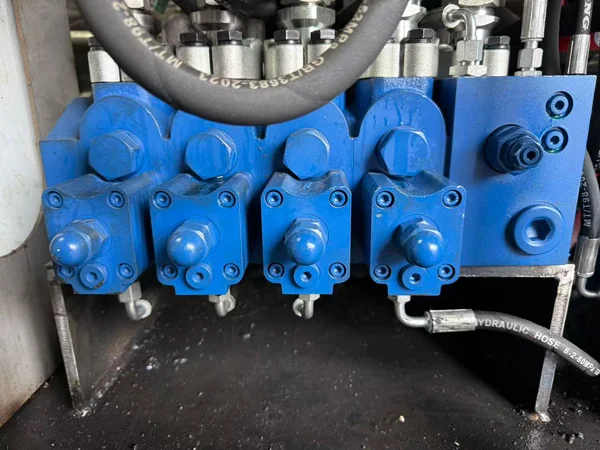

A directional drilling rig manufactured by a Guizhou-based Chinese manufacturer, using QFZMG28H series load-sensing hydraulic manifold.
A roadway drilling rig produced by a drilling equipment manufacturer in China, equipped with QFZMG15H series load-sensing hydraulic manifold.

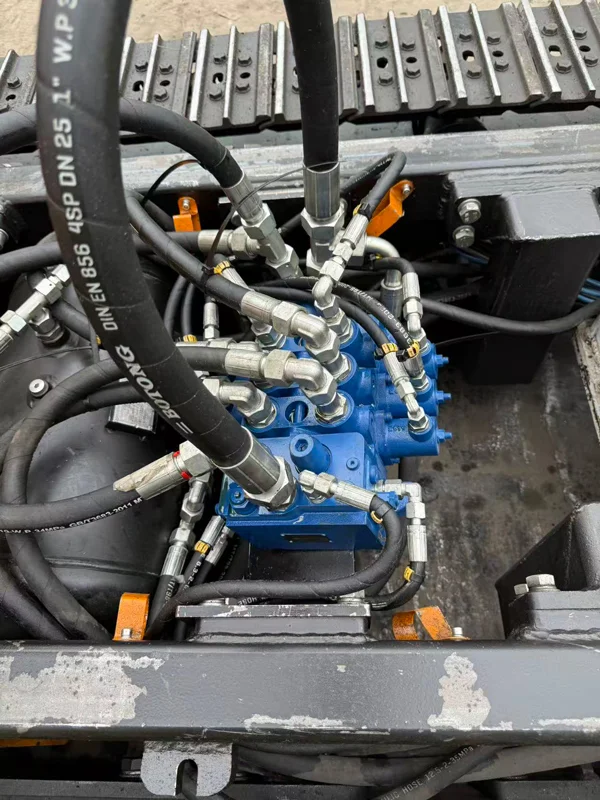

A prototype tracked vehicle developed by a listed company in Hebei Province, tested with QFZMG14H series load-sensing hydraulic manifold.
