Load-Sensing Hydraulic Manifold
LT-PSV/PSL (Load-Sensing System)
The LT-PSV/PSL series load-sensing hydraulic manifold is designed based on the load-sensing (LS) control principle. By dynamically adjusting system oil supply according to load feedback, the system flow is matched to actuator demand. The series is mainly used for control applications in construction machinery, mining machinery, agricultural machinery, coal mining equipment, and metallurgical machinery, and is suitable for hydraulic systems with requirements for energy efficiency and stable control performance.
Features & Advantages
- Load-sensing adaptive control: System oil supply is regulated according to actuator load variation, reducing pump load and overall energy consumption.
- Low-power unloading function: Energy loss and system heat generation are reduced under light-load or idle operating conditions.
- Multiple control options: Supports manual control, hydraulic pilot control, electric control, and CAN bus control, facilitating integration with different control systems.
- Series-based configuration: A wide range of port sizes, flow ratings, and section combinations are available to suit hydraulic systems of different scales and capacities.

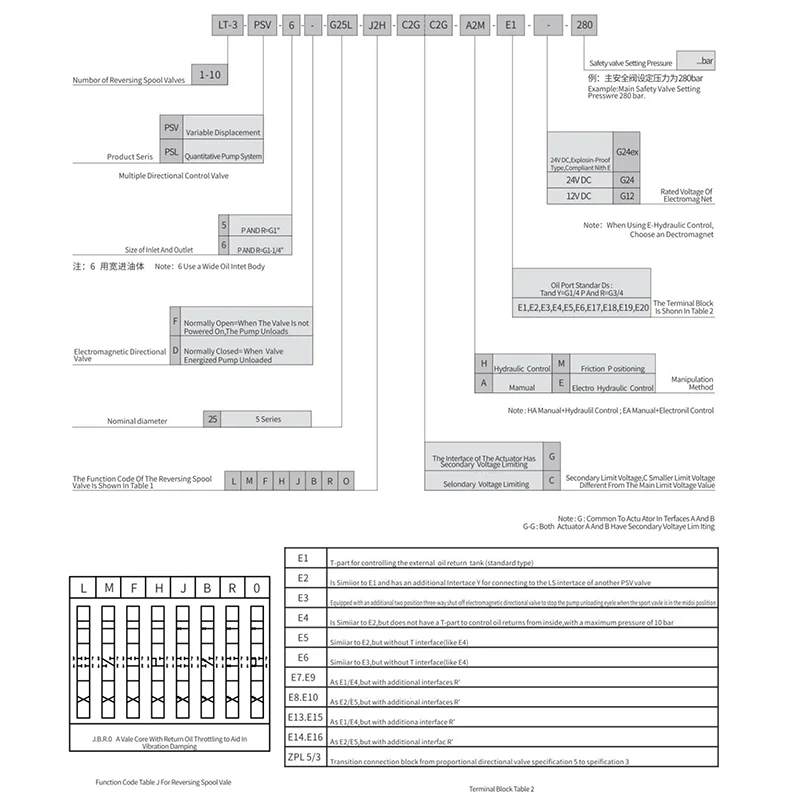

Selection Guidelines

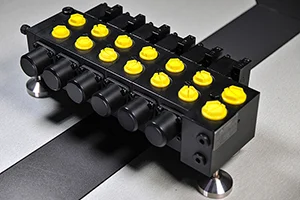

Load-Sensing Hydraulic Manifold, LT-PSV-3 Request a Quote
3 Spool Load-Sensing Hydraulic Manifold
5 Spool Load-Sensing Hydraulic Manifold
4 Spool Load-Sensing Hydraulic Manifold
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Steel |
| Nominal Diameter | 20mm |
| Max. Flow Rate | 80L/min |
| Max. Working Pressure | 350bar |

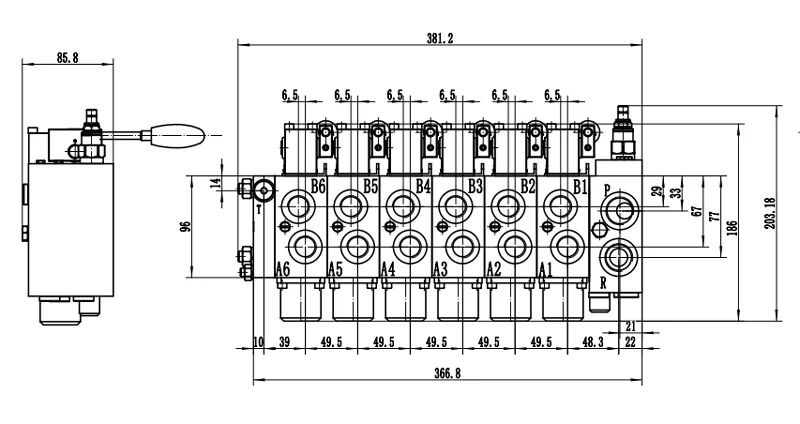

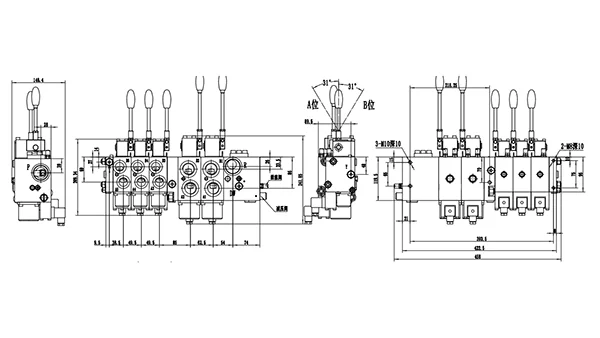

Dimension Drawing

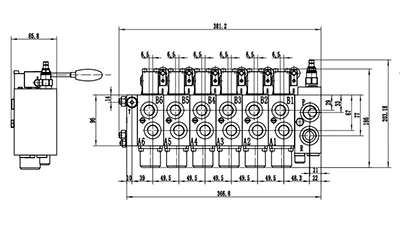

Dimension Drawing

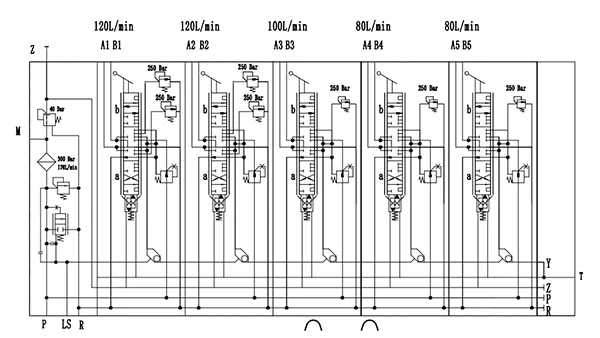

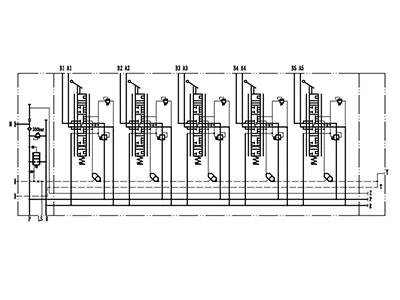

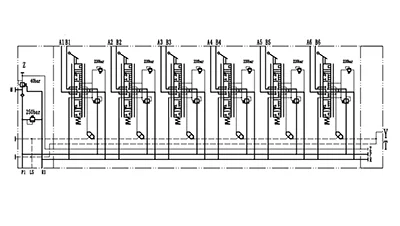

Diagram
Load-Sensing Hydraulic Manifold, LT-PSL-3 Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Steel |
| Nominal Diameter | 20mm |
| Max. Flow Rate | 80L/min |
| Max. Working Pressure | 350bar |
Load-Sensing Hydraulic Manifold, LT-PSV-5 Request a Quote
3 Spool Load-Sensing Hydraulic Manifold
5 Spool Load-Sensing Hydraulic Manifold
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Steel |
| Nominal Diameter | 25mm |
| Max. Flow Rate | 160L/min |
| Max. Working Pressure | 350bar |

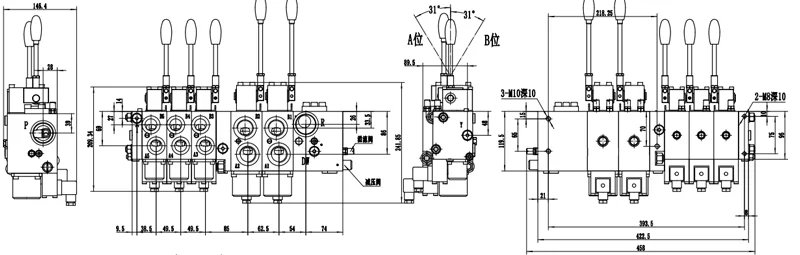

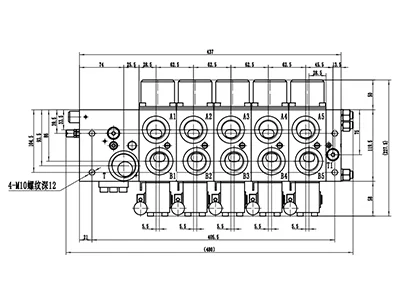

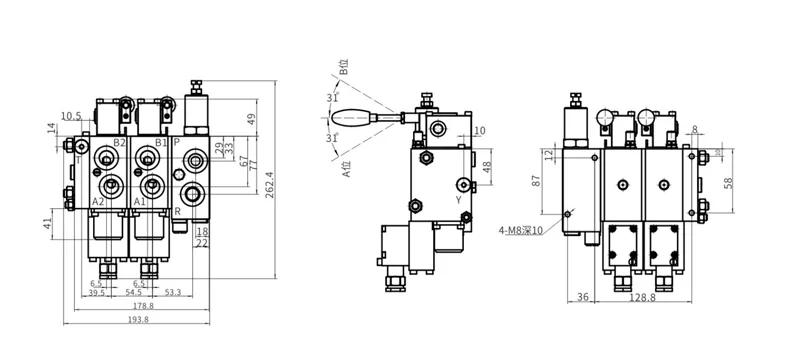

Dimension Drawing 1
Dimension Drawing 1

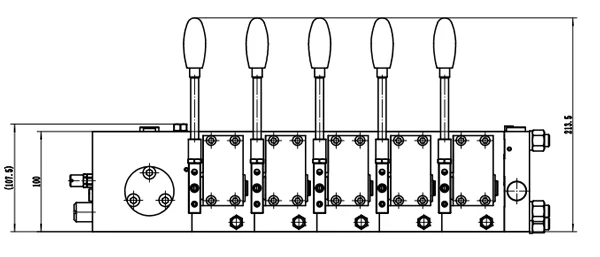

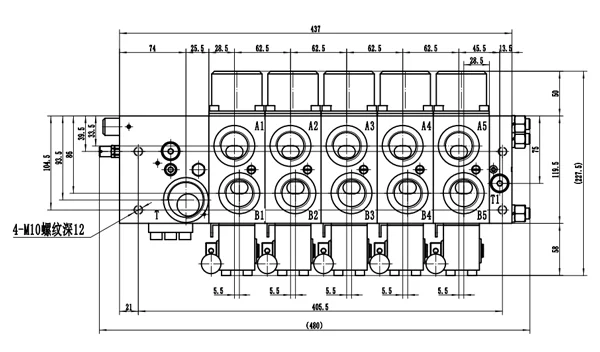

Dimension Drawing 2
Dimension Drawing 2

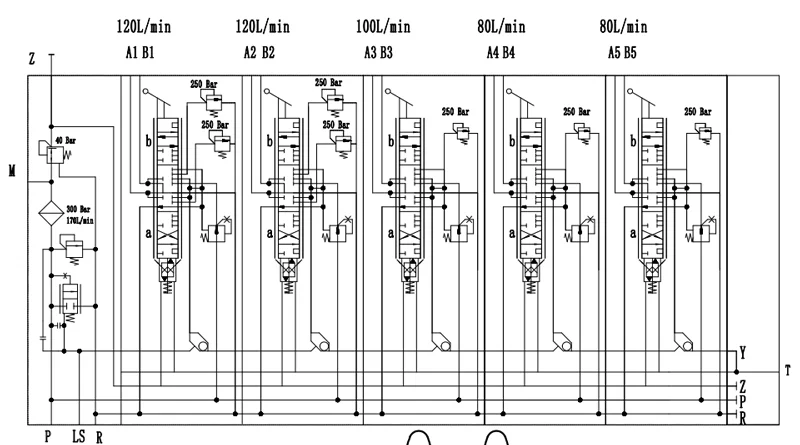

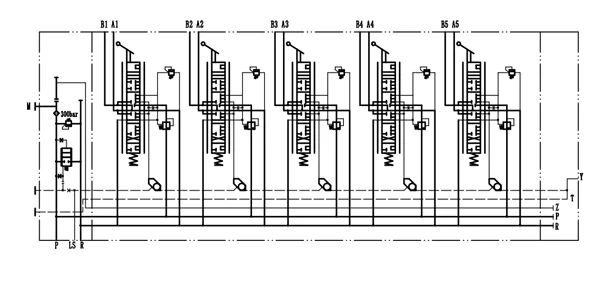

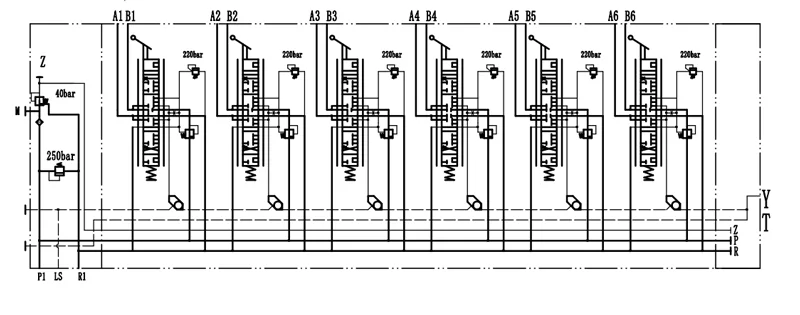

Diagram

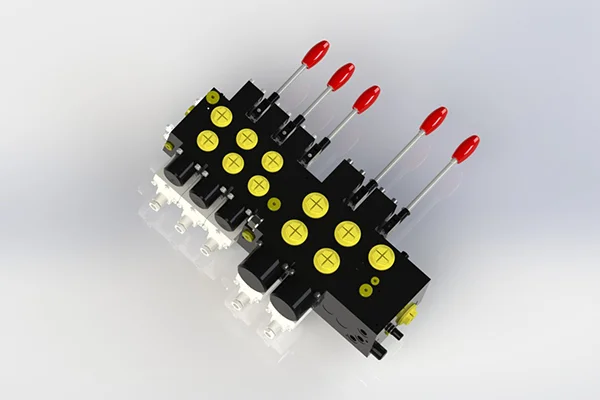

Load-Sensing Hydraulic Manifold, LT-PSV-5-3 Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic/Solenoid/CAN-Bus |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Steel |
| Max. Flow Rate | 160L/min |
| Max. Working Pressure | 350bar |

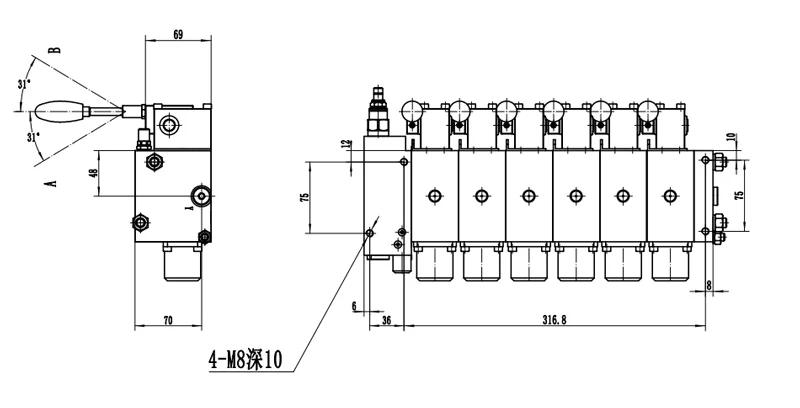

Dimension Drawing

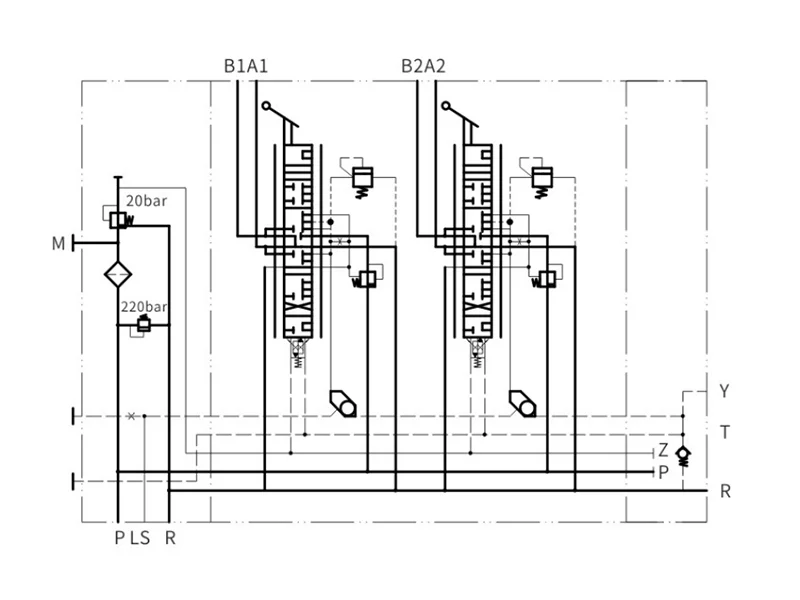

Diagram
Customer Cases

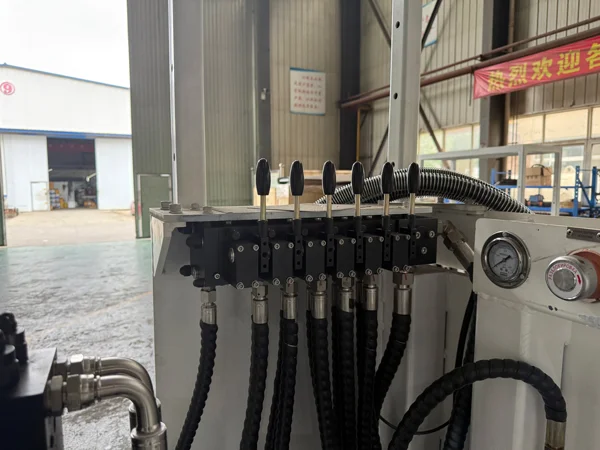

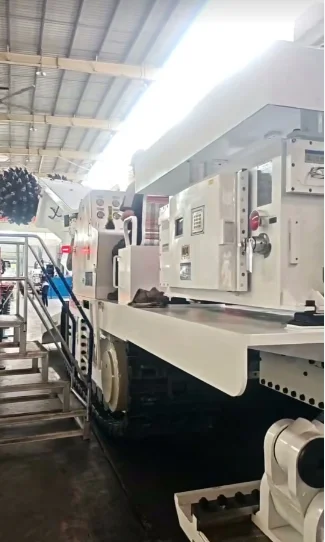

A roadway excavation-bolting-support integrated machine manufactured by a company under China Coal Technology & Engineering Group, equipped with LT-PSV series load-sensing hydraulic manifold.
A roadway rehabilitation machine manufactured by a domestic company, equipped with LT-PSV series load-sensing hydraulic manifold.
