Integrated Hydraulic Directional Valve

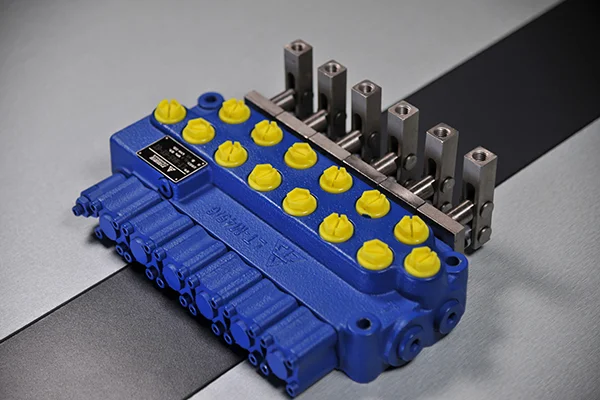

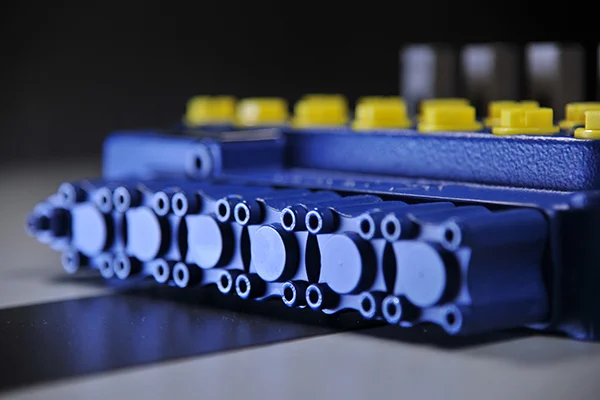

LT-M45 Hydraulic Control Valves
The LT-M45 monoblock multi spool directional-control valve is an integrated one-piece cast hydraulic control valve designed for hydraulic systems used in construction machinery, mining machinery, agricultural machinery, coal mining equipment, and metallurgical machinery. It is intended for directional control of multiple hydraulic actuators. With 1-6 section configuration options, this design is well suited for hydraulic systems with a limited number of circuits and compact layout requirements. Manual operation is adopted to meet basic and reliable hydraulic control needs.
Request a Quote
Features & Advantages
- Flexible return oil arrangement: Supports both standard return flow and power-beyond (carry-over) operation, allowing flexible application under different system layout configurations.

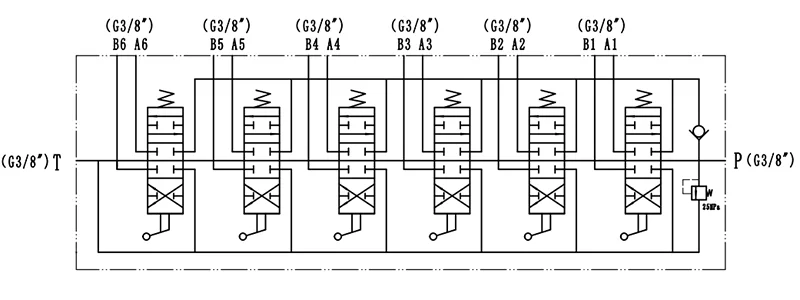

Diagram

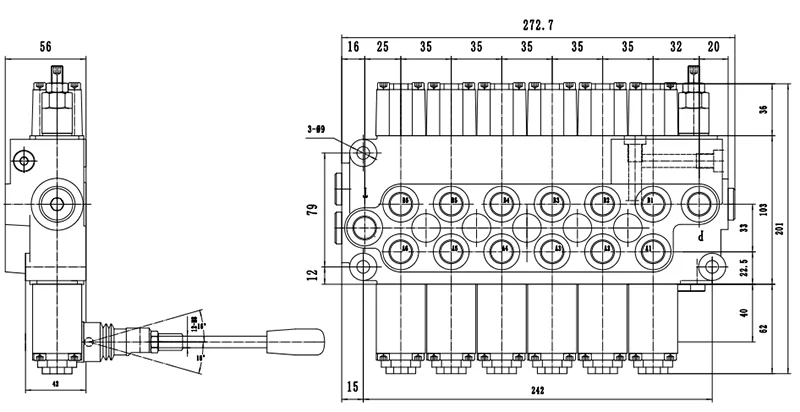

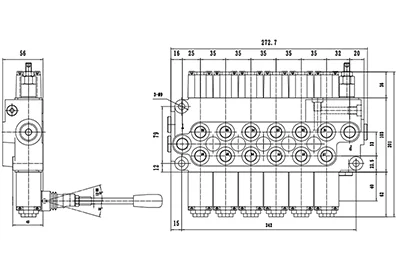

Dimension Drawing
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 10mm |
| Max. Flow Rate | 45L/min |
| Max. Working Pressure | 315bar |
Customer Cases

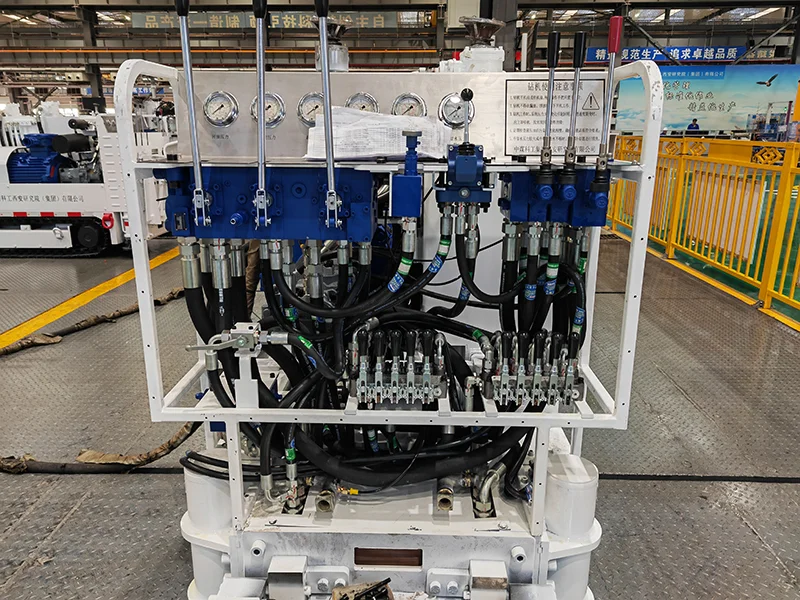

Auxiliary posture adjustment valve used on an 8500 roadway drilling rig manufactured by China Coal Technology & Engineering Group Xi’an Research Institute, equipped with the LT-M45 series monoblock multi spool directional-control valve.

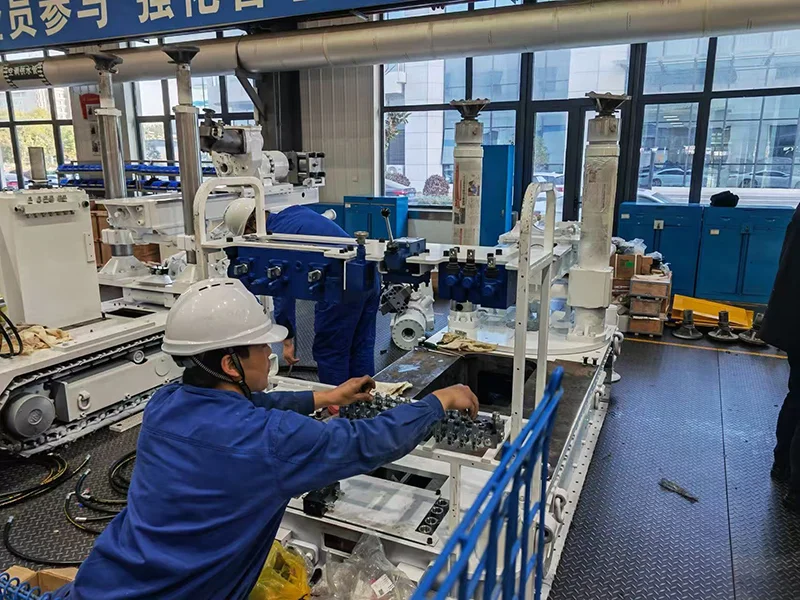

Auxiliary posture adjustment valve used on a 6500 roadway drilling rig manufactured by China Coal Technology & Engineering Group Xi’an Research Institute, equipped with the LT-M45 series monoblock multi spool directional-control valve.
