Monoblock Directional Control Valve
ZTXCF Hydraulic Control Valves

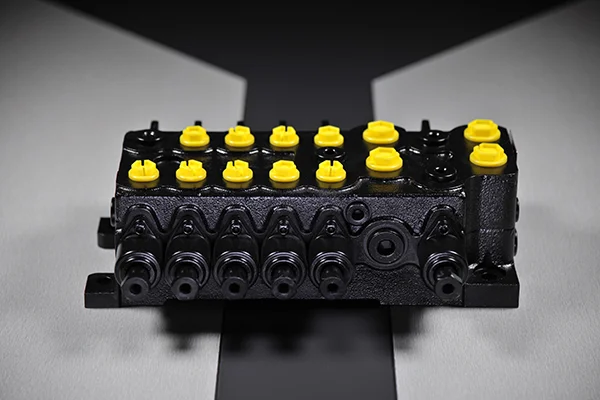

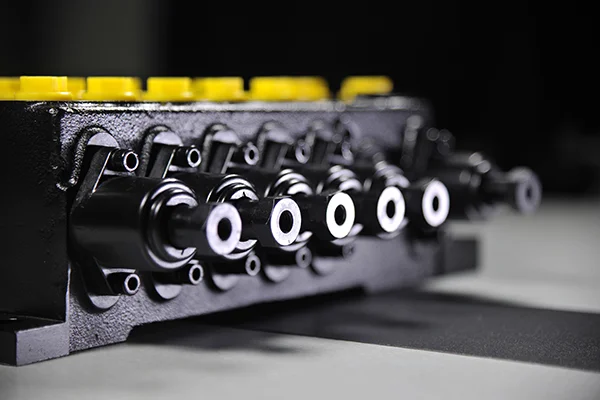

The ZTXCF monoblock directional control valve is an integrated one-piece cast hydraulic control valve primarily used in lower-structure control systems of full-hydraulic truck cranes, aerial work platforms, and truck-mounted cranes. It is designed to provide directional control of multiple hydraulic actuators.
A monoblock structure is adopted, making it suitable for hydraulic systems with relatively centralized circuits and high requirements for compact layout. Manual operation is used to meet the application needs of lower-structure control systems.
Request a Quote
A monoblock structure is adopted, making it suitable for hydraulic systems with relatively centralized circuits and high requirements for compact layout. Manual operation is used to meet the application needs of lower-structure control systems.
Features & Advantages
- Operator-friendly design: The monoblock structure and high level of integration result in low operating force, making the valve suitable for applications such as lower-structure control systems that require frequent manual operation.
- Operating-condition matching capability: Based on the standard structure, functional options and configurations can be adjusted according to specific application requirements.

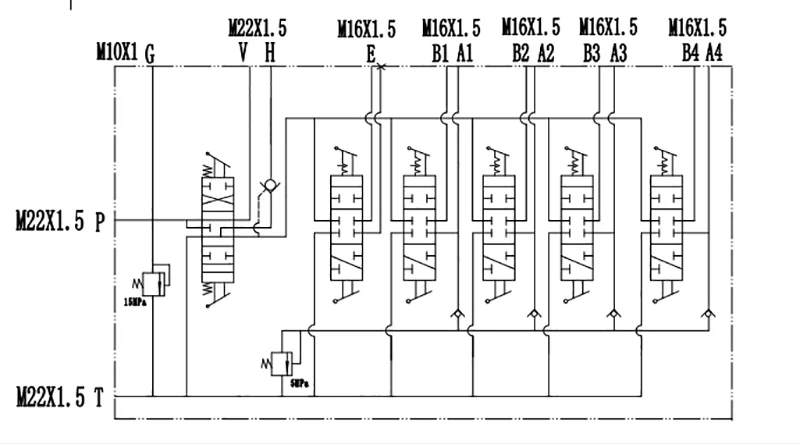

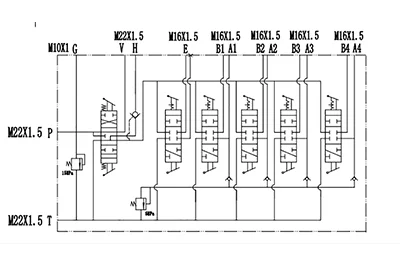

Diagram

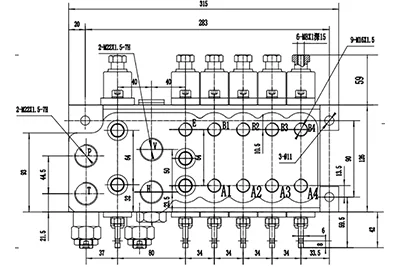

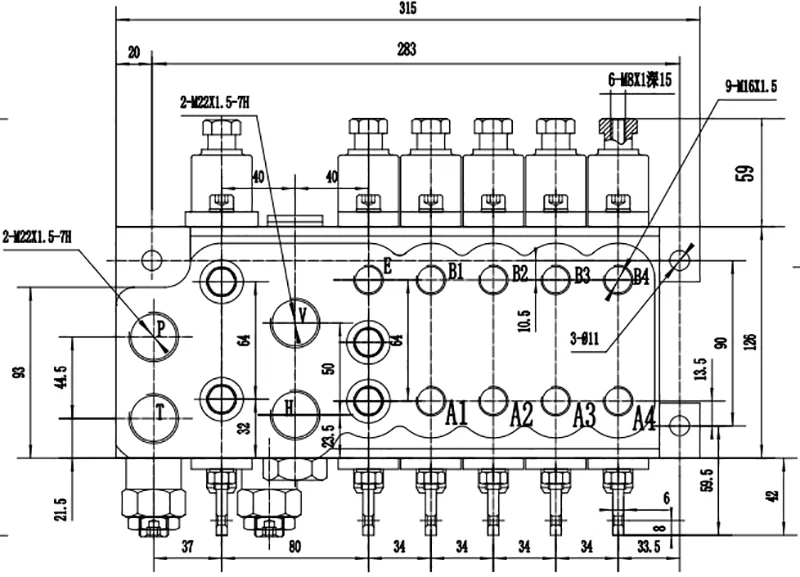

Dimension Drawing
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Max. Flow Rate | 80L/min |
| Max. Working Pressure | 315bar |
