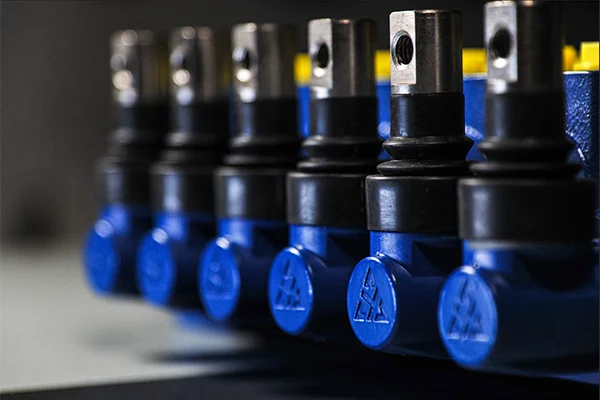

Hydraulic Directional Control Valve
The HCD6 hydraulic directional-control valve is a sectional-type hydraulic control valve designed for hydraulic systems used in construction machinery, mining machinery, agricultural machinery, coal mining equipment, and metallurgical machinery. It is intended for directional control and centralized management of multiple hydraulic actuators. Both manual control and hydraulic pilot control are supported, making the valve suitable for a wide range of equipment types and system configurations.
Features & Advantages
- General-purpose sectional structure: A compact sectional design suitable for hydraulic control systems across various types of machinery.
- System safety configuration: Equipped with a pressure relief valve to address pressure control requirements under both steady-state and transient operating conditions.
- Multiple spool functions: Different spool functions can be selected according to control requirements, allowing matching with various motion logic and operating sequences.
- Customizable matching: Configuration adjustments can be made based on the standard structure to adapt to different operating conditions and application scenarios.

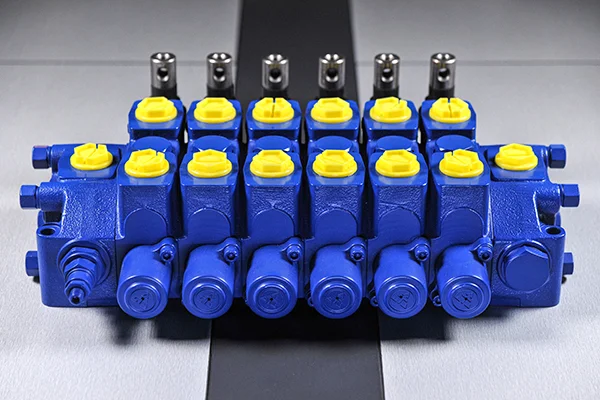

Manual Control Request a Quote

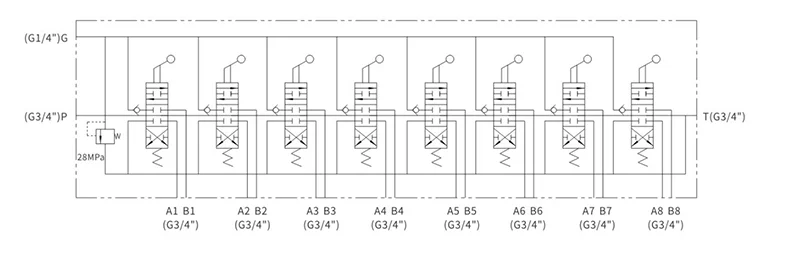

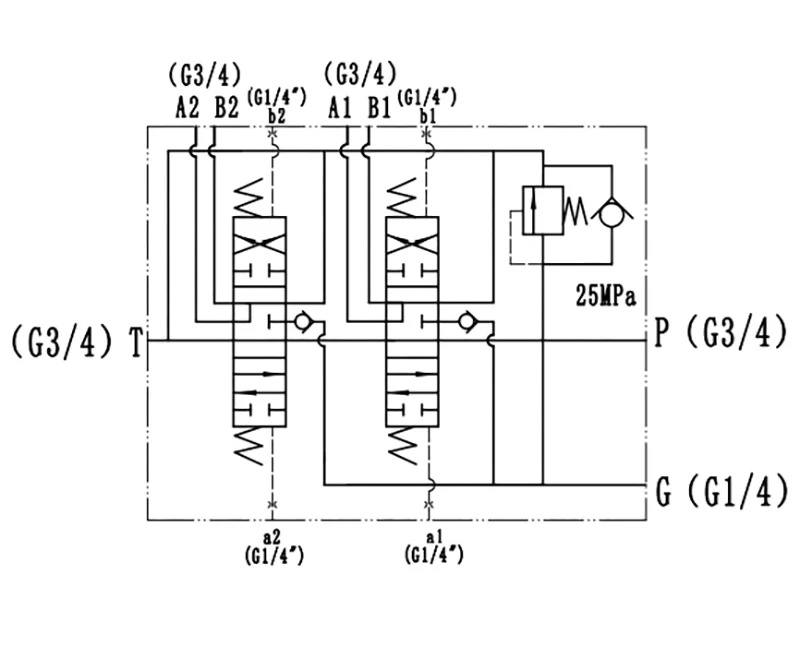

Diagram

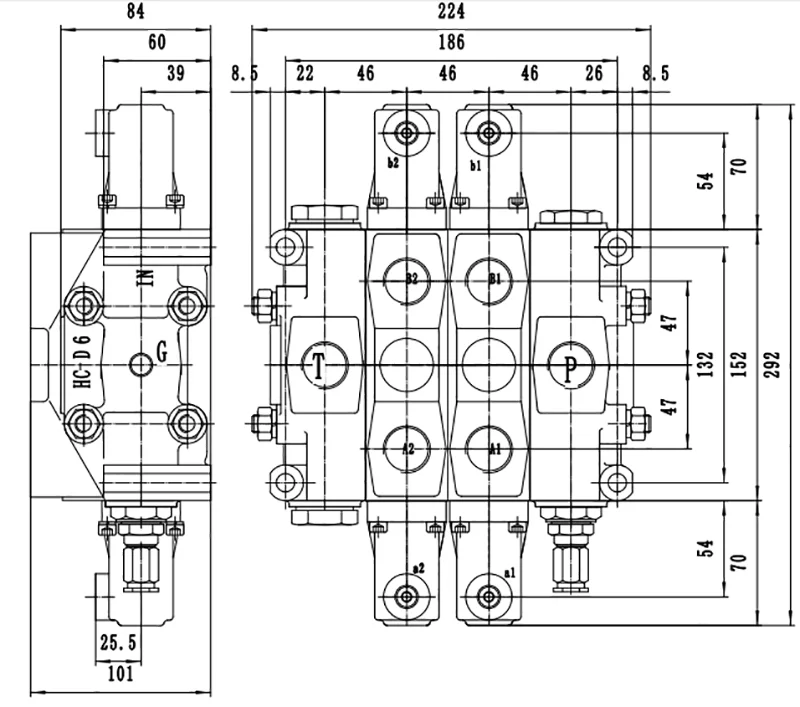

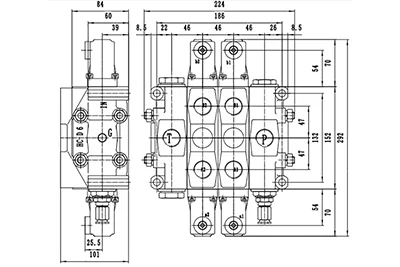

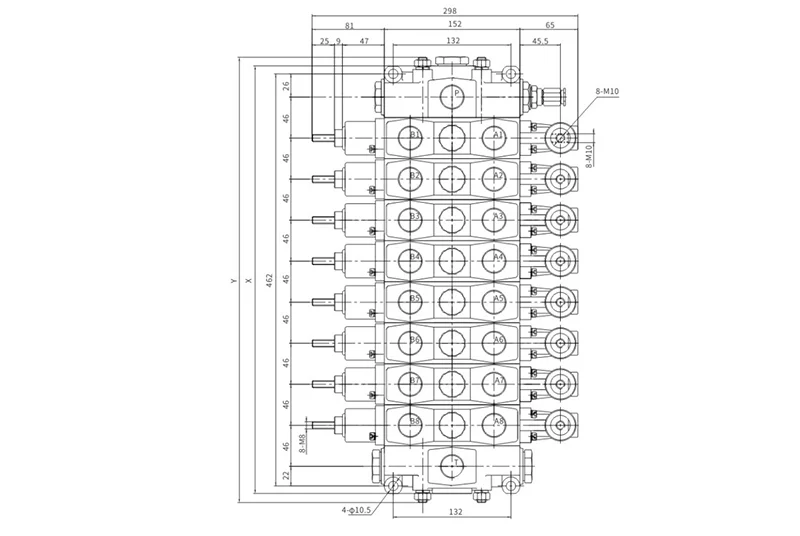

Dimension Drawing

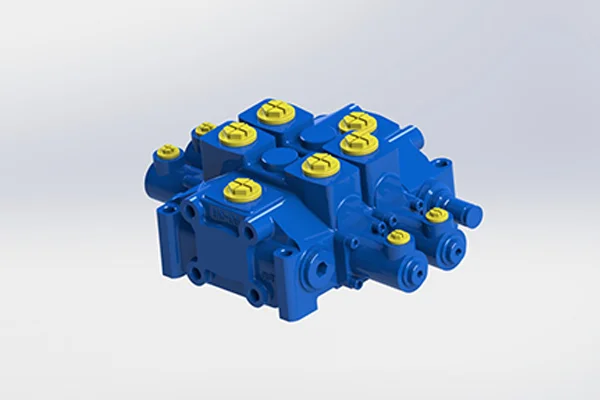

Hydraulic Pilot Control Request a Quote
Specifications
| Fluid Media | Hydraulic oil |
|---|---|
| Mounting Type | Threaded connection |
| Control Type | Manual/Hydraulic |
| Seal Material | NBR/FKM (Viton) |
| Body Material | Cast iron |
| Nominal Diameter | 20mm |
| Max. Flow Rate | 100L/min |
| Max. Working Pressure | 315bar |
